3.6V 1S1P Lithium Ion Battery Cells 2980mAh Rechargeable With PCB

Brand Name : FUNPACK

Model Number : L28017

Certification : CE ROHS UL

Place of Origin : MADE IN CHINA

Supply Ability : 10000PCS/Month

MOQ : 10000PCS

Price : Negotiated The Price

Payment Terms : T/T, D/P, D/A, L/C

Delivery Time : 30-45 work days

Packaging Details : Customer Requirements

Capacity : 2980mAh(min)

Nominal Voltage : 3.6V

Cycle Life : After 300 Cycles (Under 25±2 ℃)

Impedance : <150mΩ

Weight : About 60g

Shipment Voltag : 3..4V ~ 3.6V

Contact Now

2980mAh-1S1P 3.6V With PCB Rechargeable Lithium-ion Battery For Fire Protection Night Vision Security Equipment


Product Description:
This is our newly designed polymer battery pack. With the latest structural design, the battery capacity of 510mah

is made in a very small size, which is suitable for the internal layout of various small-size electronic products. The
battery can also be used in medical products and wearable products, and is suitable for various Bluetooth headset
trackers, etc.
Customer customized service accepted.
Through advanced battery program management and deep participation of cell factory, you can customize battery
and circuit board parameters anytime, anywhere. It is convenient to apply the battery to various fields.


Basic specification:

Item Specification
Battery Pack Type 1S1P Embedded
Cell Type NCR18650BD
Capacity 2980mAh(min)
Standard Charging
Current		 596mA (0.2C)
Standard Discharging
Current		 596mA (0.2C)
Nominal Voltage 3.6V
End of Voltage (Discharge) 3.0V
Cycle life After 300 cycles (Under 25±2 ℃)
Impedance <150mΩ
Weight About 60g
Shipment Voltag 3..4V ~ 3.6V
Maximum Charging Current
Charge current 4.2V@ 0℃ ~ 10℃, cut off 59.6mA Maintenance trigger voltage: 4.1V 447mA (0.15C)
Charge current 4.2V@10℃ ~ 45℃, cut off 59.6mA Maintenance trigger voltage: 4.1V 894mA (0.3C)
Charge current 4.10V@45℃ ~ 60℃, cut off 59.6mA Maintenance trigger voltage: 4.0V 894mA (0.3C)
Charge current 3.0V@ 0℃ ~ 45℃, cut off 59.6mA 298mA (0.1C)
Maximum Discharging Current
Discharge Current – @ -20℃ ~ 0℃ 596mA (0.2C)
Discharge Current – @ 0℃ ~ 60℃ 2980mA(1.0C)
Environmental using conditions
When stored within 1 Month (RSOC 50% *1) *b -20~ +50℃
When stored within 3 Months (RSOC 50% *1) *b -20~ +40℃
When stored within 12Months (RSOC 50% *1) *b -20~ +20℃


Main Applications :
Widely applied in POS system, Solar supply system, electric tools, household,appliance and emergent device area, electric
bikes, Laptop, camcorder, Military equipment, IR telescope, Medical devices.

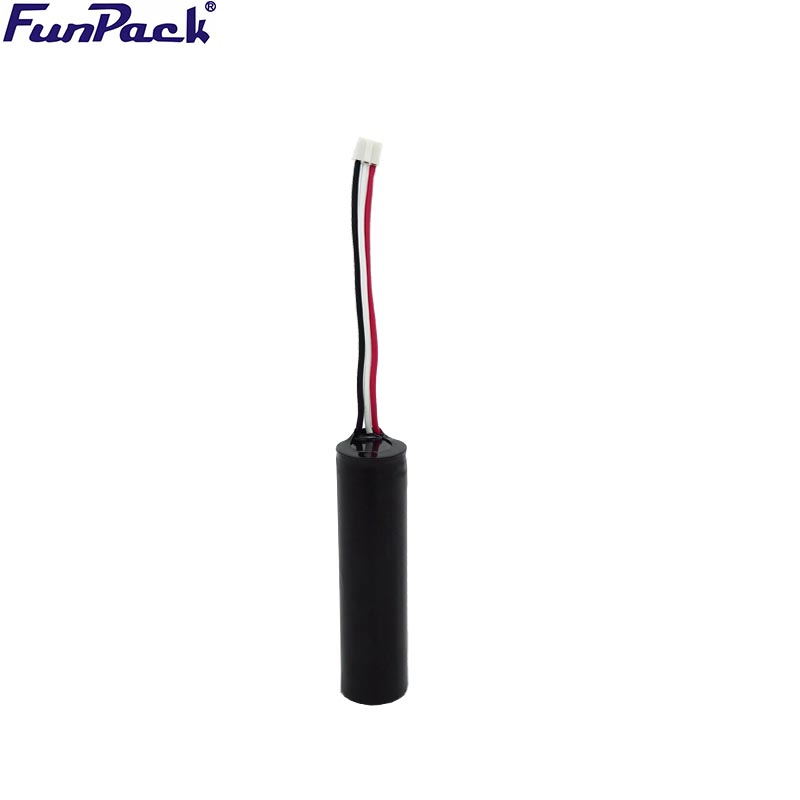

3.6V 1S1P Lithium Ion Battery Cells 2980mAh Rechargeable With PCB

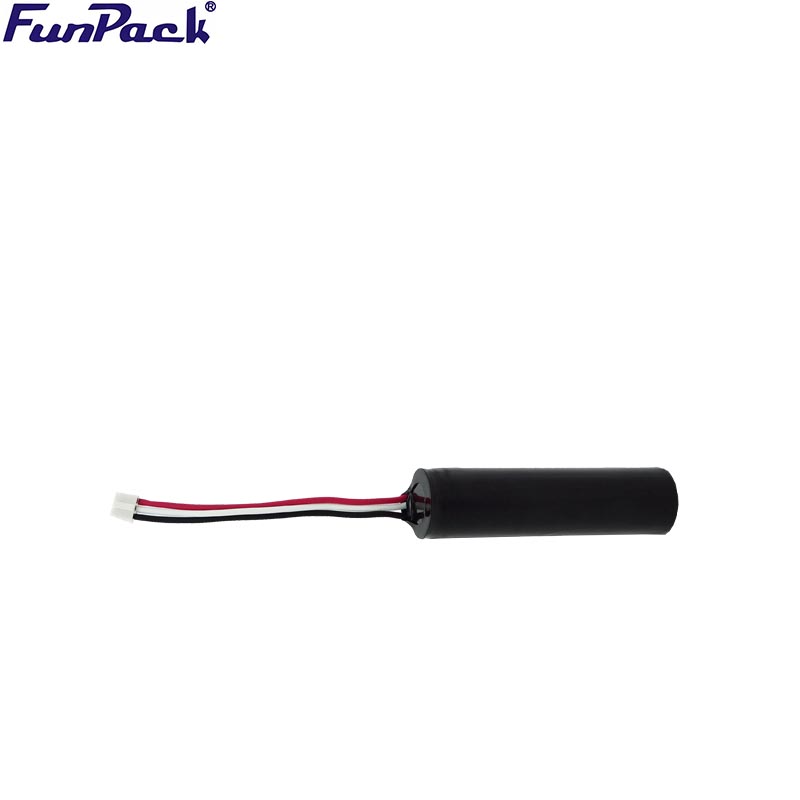

3.6V 1S1P Lithium Ion Battery Cells 2980mAh Rechargeable With PCB
FAQ:
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q6: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority.
